Retaining wall

Retaining wall

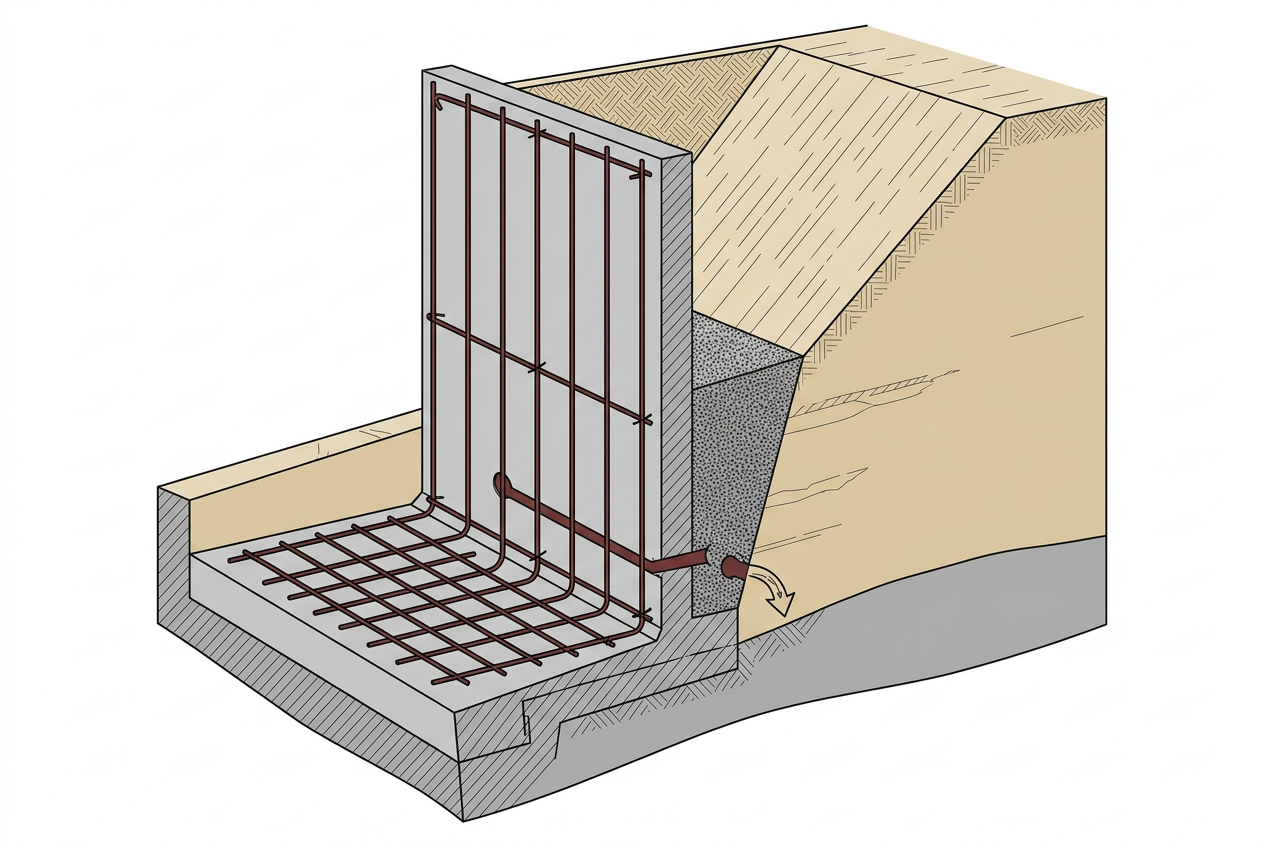

In short : L-shaped wall holding back earth on sloping ground: the soil weight on its base stabilizes it against the thrust. Drainage behind the wall is as vital as the rebar — trapped water doubles the thrust.

Typical dimensions & rules
  • •Stem: thickness ≈ H/10 to H/12, vertical bars on the soil side
  • •Base: width ≈ 0.5-0.7 × H, heel under the backfill
  • •Weep holes every 2-3 m + gravel drain + geotextile
  • •Expansion joints every 8-10 m
Common mistakes to avoid
  • ✗No drainage → wall overturns at the first heavy rain
  • ✗Vertical bars on the outer face (wrong side!)
  • ✗Backfilling before the concrete gains strength

Frequently asked questions

What is the role of: retaining wall?

L-shaped wall holding back earth on sloping ground: the soil weight on its base stabilizes it against the thrust. Drainage behind the wall is as vital as the rebar — trapped water doubles the thrust.

What are typical dimensions and rules for retaining wall?

Stem: thickness ≈ H/10 to H/12, vertical bars on the soil side. Base: width ≈ 0.5-0.7 × H, heel under the backfill. Weep holes every 2-3 m + gravel drain + geotextile. Expansion joints every 8-10 m.

What mistakes should I avoid with retaining wall?

No drainage → wall overturns at the first heavy rain. Vertical bars on the outer face (wrong side!). Backfilling before the concrete gains strength.
