Traditional timber truss

Traditional timber truss

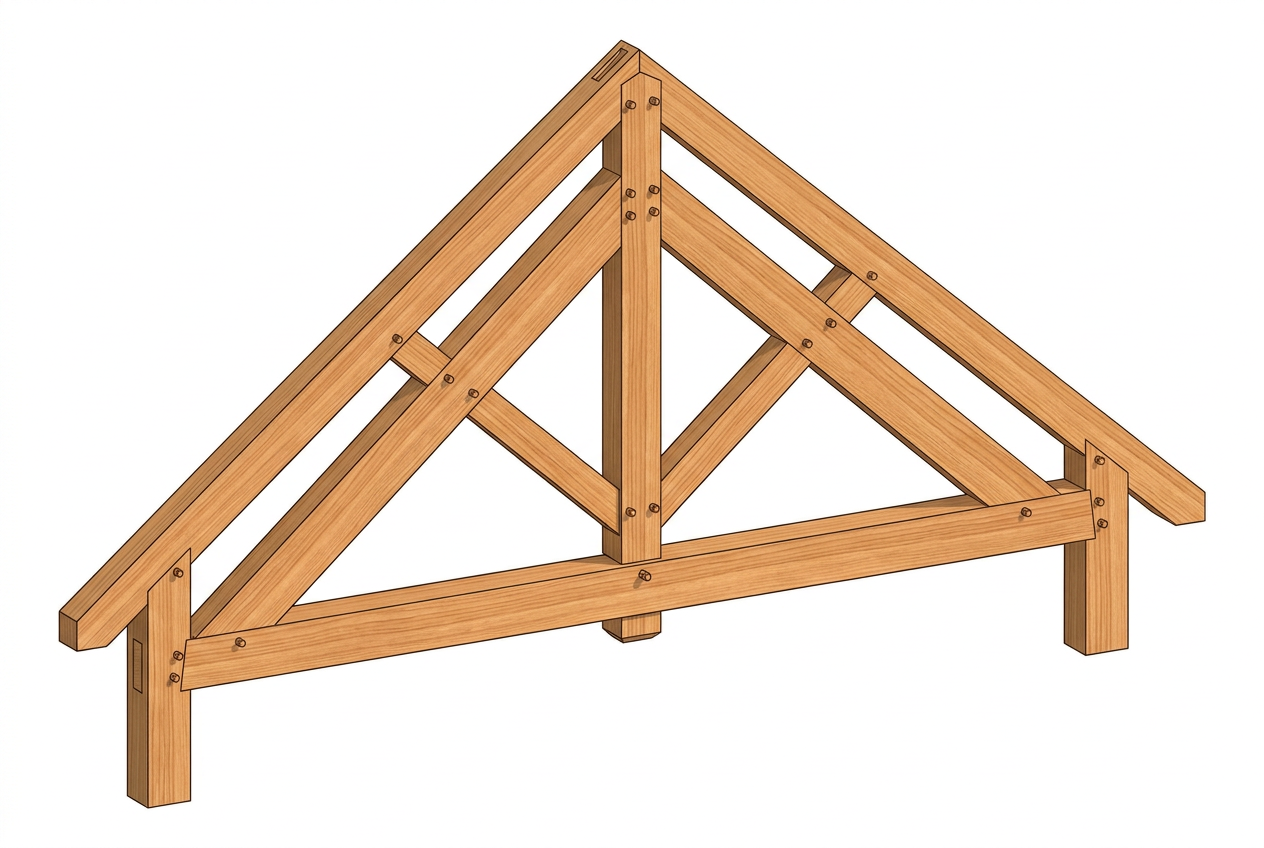

In short : The load-bearing triangle of timber roofing: two inclined principal rafters, a horizontal tie beam resisting their thrust, a central king post and struts. The tie beam stops the walls from spreading — it's what saves the house.

Typical dimensions & rules
  • •Common spans: 6-12 m
  • •Principal rafters: 8×20 to 10×25 cm; tie beam: 8×20 cm min
  • •Joints: mortise & tenon, birdsmouth notches, bolts
  • •Spacing: 3-4 m (trusses) carrying purlins
Common mistakes to avoid
  • ✗Cutting the tie beam for a corridor → thrust on walls
  • ✗Timber untreated against termites and fungi
  • ✗Nailed joints where bolts + notches are required

Frequently asked questions

What is the role of: traditional timber truss?

The load-bearing triangle of timber roofing: two inclined principal rafters, a horizontal tie beam resisting their thrust, a central king post and struts. The tie beam stops the walls from spreading — it's what saves the house.

What are typical dimensions and rules for traditional timber truss?

Common spans: 6-12 m. Principal rafters: 8×20 to 10×25 cm; tie beam: 8×20 cm min. Joints: mortise & tenon, birdsmouth notches, bolts. Spacing: 3-4 m (trusses) carrying purlins.

What mistakes should I avoid with traditional timber truss?

Cutting the tie beam for a corridor → thrust on walls. Timber untreated against termites and fungi. Nailed joints where bolts + notches are required.
