RC staircase

RC staircase

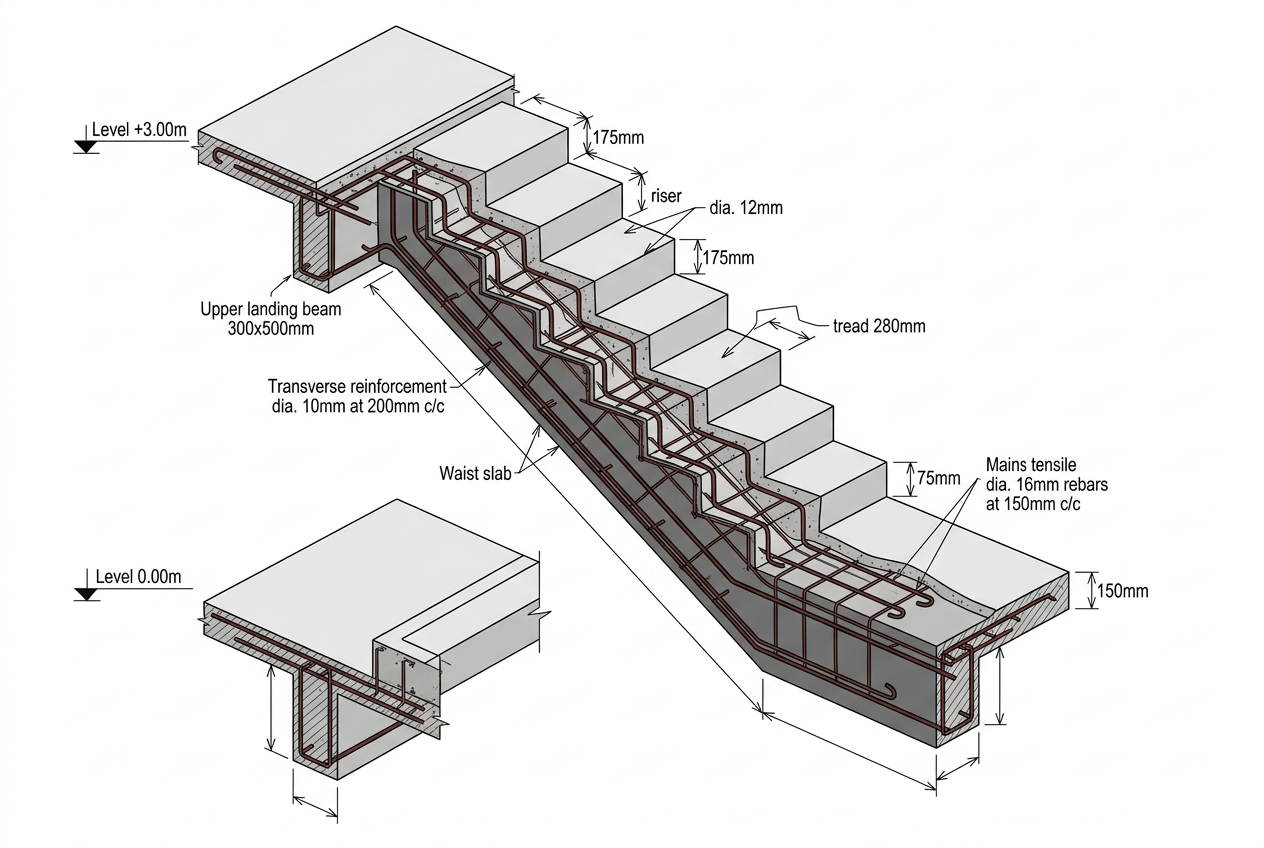

In short : Inclined slab (waist) on which the steps are cast. The waist works as a bending slab between its two supports: its main bars run along the slope, on the lower face.

Typical dimensions & rules
  • •Waist: 12-15 cm thick
  • •Comfort: 2r + g ≈ 60-64 cm (riser 16-18, going 26-30)
  • •Main bars along the slope + transverse distribution
  • •Anchored into landings and starting beam
Common mistakes to avoid
  • ✗Main bars laid horizontally instead of along the slope
  • ✗Unequal riser heights (danger + visible defect)
  • ✗Waist cast without connection to landings

Frequently asked questions

What is the role of: rc staircase?

Inclined slab (waist) on which the steps are cast. The waist works as a bending slab between its two supports: its main bars run along the slope, on the lower face.

What are typical dimensions and rules for rc staircase?

Waist: 12-15 cm thick. Comfort: 2r + g ≈ 60-64 cm (riser 16-18, going 26-30). Main bars along the slope + transverse distribution. Anchored into landings and starting beam.

What mistakes should I avoid with rc staircase?

Main bars laid horizontally instead of along the slope. Unequal riser heights (danger + visible defect). Waist cast without connection to landings.
