Rafters & battens

Rafters & battens

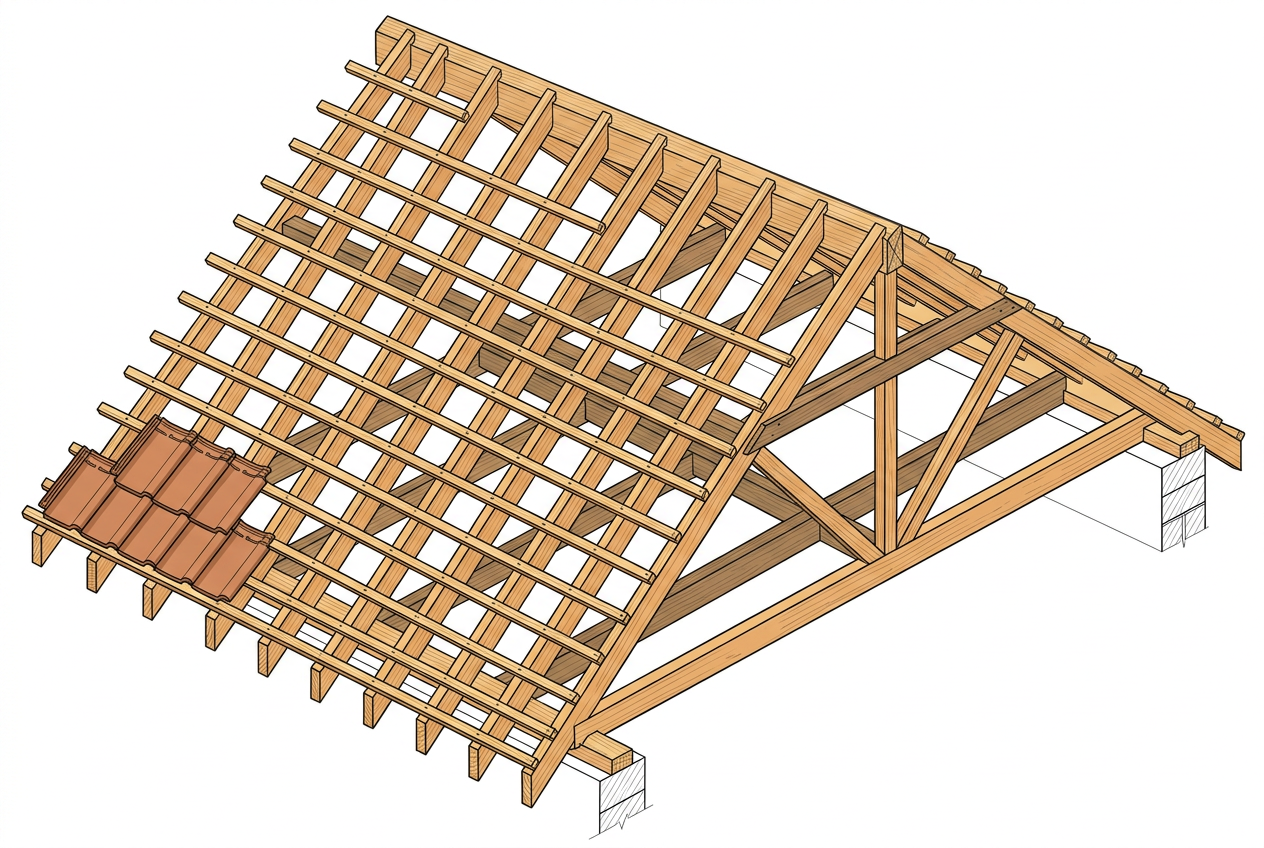

In short : Rafters run down the slope, laid on purlins, carrying the battens — the horizontal strips on which tiles hang or sheets rest. The roof's load-bearing skin.

Typical dimensions & rules
  • •Rafters: 6×8 or 7×10 cm, spacing 40-60 cm
  • •Battens: 3×4 cm, spacing = tile gauge
  • •Anti-uplift fixing of rafters to purlins
  • •For sheets: battens become spaced sub-purlins
Common mistakes to avoid
  • ✗Rafter spacing too large for the covering
  • ✗Green battens drying and splitting
  • ✗No uplift fixing at all

Frequently asked questions

What is the role of: rafters & battens?

Rafters run down the slope, laid on purlins, carrying the battens — the horizontal strips on which tiles hang or sheets rest. The roof's load-bearing skin.

What are typical dimensions and rules for rafters & battens?

Rafters: 6×8 or 7×10 cm, spacing 40-60 cm. Battens: 3×4 cm, spacing = tile gauge. Anti-uplift fixing of rafters to purlins. For sheets: battens become spaced sub-purlins.

What mistakes should I avoid with rafters & battens?

Rafter spacing too large for the covering. Green battens drying and splitting. No uplift fixing at all.
