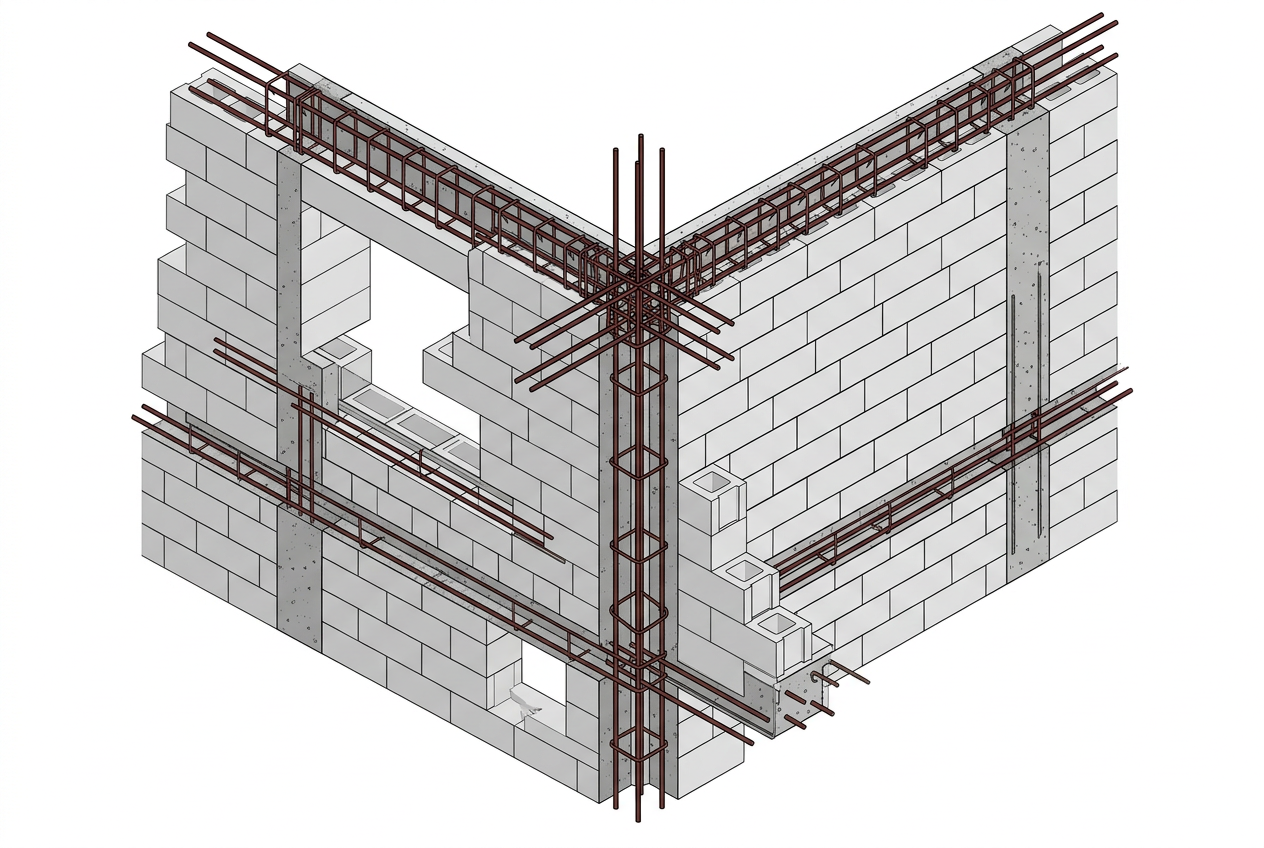

Bond beams & tie columns

In short : The safety belt of a blockwork house: bottom ring beam on the foundations, vertical tie columns at corners and openings, top ring beam under the roof. They stitch the masonry into a solid box resisting settlement, wind and earthquakes. The most neglected element of self-built sites.
- •Section: 15×15 to 15×20 cm, 4 HA10 + HA6 stirrups @20 cm
- •Vertical ties: at every corner, junction and opening edge > 1.5 m
- •Continuity is mandatory: bars lap at corners (L-bars)
- •Top ring beam: anchor the wall plate/roof into it
- ✗Corners without continuity L-bars ('decorative' ring beam)
- ✗Top ring beam removed 'to save money' → X-cracks at corners
- ✗Roof not anchored into the top ring beam (wind pull-off)
Frequently asked questions
What is the role of: bond beams & tie columns?
The safety belt of a blockwork house: bottom ring beam on the foundations, vertical tie columns at corners and openings, top ring beam under the roof. They stitch the masonry into a solid box resisting settlement, wind and earthquakes. The most neglected element of self-built sites.
What are typical dimensions and rules for bond beams & tie columns?
Section: 15×15 to 15×20 cm, 4 HA10 + HA6 stirrups @20 cm. Vertical ties: at every corner, junction and opening edge > 1.5 m. Continuity is mandatory: bars lap at corners (L-bars). Top ring beam: anchor the wall plate/roof into it.
What mistakes should I avoid with bond beams & tie columns?
Corners without continuity L-bars ('decorative' ring beam). Top ring beam removed 'to save money' → X-cracks at corners. Roof not anchored into the top ring beam (wind pull-off).
